Blackholing Detection#

1. Objectives#

At scale, one of the hardest failures to catch is traffic that disappears inside the network: routing mistakes, hardware faults, resource pressure, or policy errors can all drop or strand packets, yet the outage often stays invisible until it shows up as user-visible slowness, support churn, or SLA risk. Teams frequently fall back on platform-local clues such as queue drops and forwarding-error counters, but those signals differ by chipset, line card, and software release, so they do not compose into one portable playbook you can run everywhere.

In this activity, you implement blackholing detection in NSP using nodal traffic symmetry (aggregate ingress versus egress at a node). You create an indicator, validate it with a controlled fault, and use the alarm as an early prompt for deeper investigation.

2. Technology Explanation#

2.1 Indicator Analytics#

An indicator is a persistent telemetry subscription that can optionally apply a formula across one or more raw counters, then evaluate the result against one or more threshold rules.

2.2 Object Filters#

Each indicator is scoped to a set of resources through an XPath object filter, written against the NSP model. The filter determines which network objects — ports, interfaces, nodes — contribute data to the indicator formula.

2.3 The Traffic Symmetry Principle#

IP routers and Ethernet switches are forwarding devices. This means the aggregate number of packets received across all active interfaces should equal the aggregate number transmitted. A persistent deviation from this balance indicates that some traffic is entering the node but not leaving — a blackholing condition.

2.4 Threshold Crossing Alerts (TCA)#

When an indicator formula value rises above (or falls below) a configured threshold, NSP emits a TCA alarm. Alternatively, TCA events can be published to Kafka. Each event includes the indicator name, the threshold that was crossed, the actual measured value, and a timestamp.

3. Tasks#

You should read these tasks from top to bottom before beginning the activity.

It is tempting to skip ahead, but tasks may require you to have completed previous tasks before tackling them.

3.1 Quick start on NSP Web UI#

3.2 Quick Start on NSP Telemetry#

Navigate into NSP Inventory:

1. Select a node such as g2-p1 (replace g2 based on your group).
2. Open the row context menu ⋮ and choose Plot statistics.
3. Wait about one minute, then review the CPU and memory graphs.
4. Click Configure and inspect the telemetry settings.

Repeat the procedure for a port:

1. Select port 1/1/c1/1 on g2-p1 (replace g2 based on your group).
2. Open the row context menu ⋮ and choose Plot utilization statistics.
3. Wait about one minute and confirm these four counters are plotted: input and output utilization, received and transmitted octets (periodic).
4. Click Configure and inspect the telemetry settings.

Ports can also Plot error statistics via telemetry:/base/interfaces/interface-errors. Feel free to visualize these as well.

To check which telemetry types and counters are available, navigate to the Telemetry Statistic Search tool. In this activity, we will use telemetry:/base/interfaces/interface because this telemetry type includes the packet counters needed for traffic symmetry checks: received-unicast-packets-periodic and transmitted-unicast-packets-periodic.

3.3 Create and Visualize a Traffic Indicator#

1. Navigate to Indicator Analytics. Click on + Indicator on the top right of your screen. Use the following information to fill in the required form:

   Indicator Configuration

   General:
     Name: G2-PORTS-TX
     Collection Interval: 30 secs
   Configuration:
     Telemetry Type: telemetry:/base/interfaces/interface
     Selected Counters: transmitted-octets-periodic


   Use the following Object Filter (XPath syntax):

   /nsp-equipment:network/network-element[contains(ne-name, 'g2-')]/hardware-component/port[(oper-state='enabled') and boolean(port-details[port-type = 'ethernet-port'])]


   NOTE: Replace g2 with your group number. This indicator is for visualization only. Do not add any thresholds.

   Debug

   Before saving an indicator, use Verify Resources to resolve the filter against live inventory and confirm it matches exactly the set of objects you expect. Click Stop Verification when you are satisfied with the result.

2. Click Create to add and activate the Indicator.

3. To visualize your indicator, click the three dots next to the entry and choose Open in Data Collection and Analysis Visualization. Select one or more ports (for example g2-p1 / 1/1/c1/1), and confirm you can plot the metric.

   Tip

   If you see the error Invalid telemetry filter, the filter is either syntactically wrong or returns no matching resources. If you copied and pasted the filter above and still see the error, you probably did not update it for your group; with access control applied, no ports are returned.

   You can validate the filter in Workflow Manager by executing action nsp.https with RPC nsp-inventory:find and the following input:

   url: https://restconf-gateway/restconf/operations/nsp-inventory:find
   body:
     input:
       xpath-filter: /nsp-equipment:network/network-element[contains(ne-name, 'g2-')]/hardware-component/port[(oper-state='enabled') and boolean(port-details[port-type = 'ethernet-port'])]
       include-meta: false
   method: POST


   Paste your indicator's object filter into xpath-filter and run it to:

   • Verify filter syntax
   • Check how many resources match
   • Inspect returned objects and refine the filter

3.4 Create a Basic Blackhole Detection Indicator#

Now create a new indicator that serves as a loss signal for P1. You will keep the previous indicator intact and visualize both side-by-side later.

Here are the differences compared to the simple indicator you've created before:

• Window duration: 1 minute
• Select packet counters for receive and transmit (periodic unicast packets)
• Object filter: scope to P1 only in your group (for example: g2-p1)
• Add a formula that calculates RX/TX asymmetry using bracketed counter names, for example {received-unicast-packets-periodic_avg}
• Add the Threshold setting to define the alert. Change the value based on the aggregate you perform.

When you run Verify Resources, you should see the 8 active Ethernet ports on P1. Visualize port 1/1/c1/1 to inspect the symmetry behavior.

Key takeaways:

• Tumbling windows update once per window interval, not continuously.
• _min, _max, _avg, _sum represent different aggregation rules for resource counters.
• At this stage, each interface is still evaluated individually (no cross-interface aggregation yet).

3.5 Testing the Blackhole Indicator#

Visualize both indicators G2-PORTS-TX and G2-BLACKHOLE-P1 for node g2-p1 port 1/1/c1/1 together.

Open a NE Session on PE1 from the NE Inventory and run the following command:

$ ping 10.46.2.11 interval 0.01 count 100000 output-format summary

This generates ~100 ICMP packets per second for around 15 minutes.

Open another CLI session on P1 and add a management access filter to simulate blackholing:

edit-config private
/configure system security management-access-filter ip-filter
  admin-state enable
  default-action accept
  entry 10 {
      action drop
      match {
          protocol icmp
      }
  }
commit
exit all
quit-config

To allow ICMP again (clear fault), disable the filter:

edit-config private
/configure system security management-access-filter ip-filter admin-state disable
commit
quit-config

To reproduce the fault again, enable it:

edit-config private
/configure system security management-access-filter ip-filter admin-state enable
commit
quit-config

3.6 Blackhole Detection as Aggregate Across Interfaces#

Traffic can enter on one interface and leave on another.
To evaluate node-level behavior, aggregate across all active Ethernet ports.

You may use resource aggregation functions such as min(), max(), avg(), sum().

Example:

• max({transmitted-unicast-packets-periodic_max}) gives the peak TX load among all selected interfaces in the window.

Now update your blackhole formula to compute a node-level aggregate.

  Formula: sum({received-unicast-packets-periodic_sum}-{transmitted-unicast-packets-periodic_sum})

3.7 Blackhole Detection as Ratio#

Formulas support operators +, -, *, /, absolute value (|value|), parentheses, and constants. Update the formula to express packet loss as a percentage. Your math looks like this:

  Formula: sum({received-unicast-packets-periodic_sum} - {transmitted-unicast-packets-periodic_sum}) / sum({received-unicast-packets-periodic_sum}) * 100

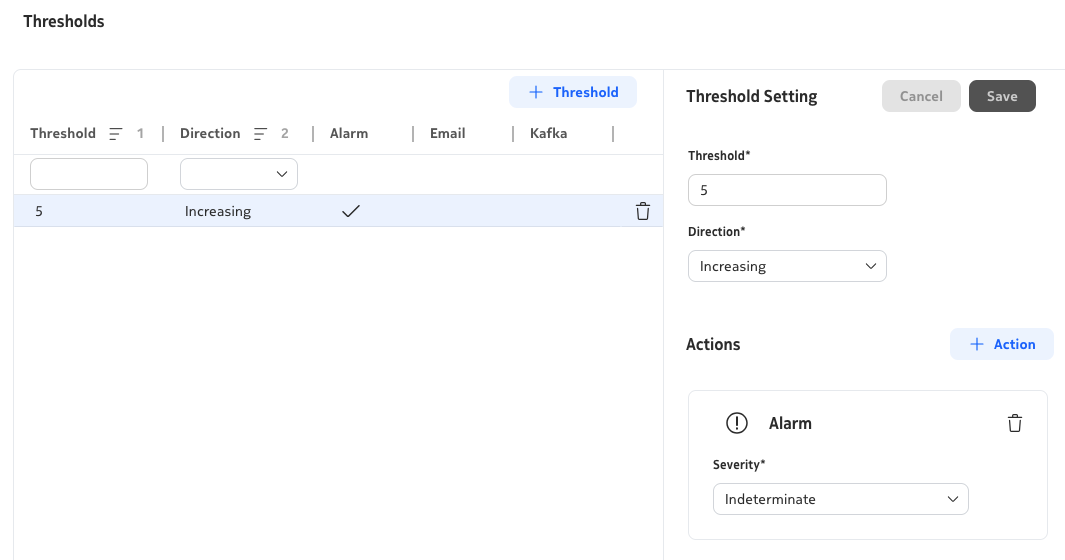

Then set a threshold to alert when blackholing exceeds 5 percent.

3.8 Simulate a Blackholing Event and Observe the Alert#

Introduce a controlled fault:

1. Keep rapid ping running from PE1 toward P1.
2. Enable the management access filter (MAF) on P1 to drop ICMP.
3. Watch indicator behavior and alarms over the next few minutes.

Return to visualization. After 3-4 minutes the asymmetry ratio should rise above the threshold. A marker in the graph will signal that the threshold was crossed. The TX volume indicator still shows traffic arriving; the ratio reveals that a growing share is not leaving. Check alarms and confirm that alerts clear after you remove the fault.

3.9 View alarms via WF Kafka trigger#

Due to access-control restrictions in your setup, the IndicatorThresholdCrossingEvent may not appear in the Current Alarms view. To work around this, navigate to Workflow Manager → Workflow Executions, locate a run whose name matches srx-alarm-kafka-payload. On a shared system there may be several runs; pick one tied to your test window. Use Input/Output to confirm how alarm fields appear for downstream logic.

result:
  additionalText: |-
    Threshold Crossing:
    - threshold-value: 5
    - direction: RISING
    - value: 80.5900
    - event-time: 2026-05-14T01:09:00Z
    - resource: N/A
  affectedObject: >-
    fdn:yang:nsp-indicator:/nsp-indicator:rta-indicator-rules/rule[name='G2-BLACKHOLE-P1']
  alarmName: IndicatorThresholdCrossingEvent
  affectedObjectType: nsp-indicator:rta-indicator-rules/rule
  sourceType: nsp
  sourceSystem: fdn:app:nsp-indicator
  probableCause: thresholdCrossed
  affectedObjectName: G2-BLACKHOLE-P1

4. Summary#

Congratulations. In this activity you built a practical workflow to detect potential traffic blackholing on a single node:

• You started with a simple traffic-visualization indicator.
• You added a formula-based asymmetry indicator for P1.
• You validated object filters and resource selection.
• You simulated and cleared a controlled ICMP drop fault with MAF.
• You correlated CLI actions with delayed indicator and alarm behavior.

The key idea is intentionally simple: use widely available packet telemetry to detect suspicious traffic disappearance without relying on platform-specific logic.

Because this approach is statistical, some baseline imbalance is expected.
A threshold such as 5 percent helps separate normal variation from events worth investigating.

5. Next Steps#

If your lab includes SR Linux nodes, try applying a similar indicator to them to validate that your solution works universally in heterogeneous environments. Indicator templates can help you deploy blackhole detection consistently across multiple nodes.

You can also explore other indicators. For example, you could build an interface burst indicator using the ratio of _max to _avg with a 30-second collection interval and a 5-minute window. The same principles apply, making indicators a powerful way to detect abnormal patterns proactively.
