SR Linux streaming telemetry#

You are a Network Engineer working on a project to deploy a new data-center with SR Linux nodes. You have already installed, configured and integrated the IP fabric into the existing network, and the next step before it's ready for production is to integrate the nodes into the management systems.

You have been asked to configure and integrate the nodes into the streaming telemetry stack comprising of gNMIc, Prometheus and Grafana.

1. Objective#

The objective is to deploy streaming telemetry from the SR Linux nodes through the monitoring stack and understand the benefits of this modern approach to network monitoring.

Before you start you will need to get familiar with streaming telemetry on SR Linux by making use of gNMI (gRPC Network Management Interface) to retrieve data from the nodes using a gNMI client tool called gnmic. You will learn the building blocks, the advantages of telemetry and how the monitoring stack works by collecting additional data and visualizing this data in Grafana. In particular you will look at:

• The differences between SNMP and streaming telemetry
• How to identify and subscribe to streaming telemetry metrics
• How the components of the telemetry monitoring stack work together
• How to configure and enable streaming telemetry using gNMI over gRPC on SR Linux
• How to create visualizations of the metrics you receive in Grafana

2. Technology explanation#

Today's networks require reliable monitoring in the WAN, Edge, and data center domains, emphasizing real-time data collection and transmission for network visibility. Streaming telemetry is the comprehensive practice of transmitting measurements from various network devices in real time to a collector for storage and further processing, ultimately creating a monitoring and reporting system.

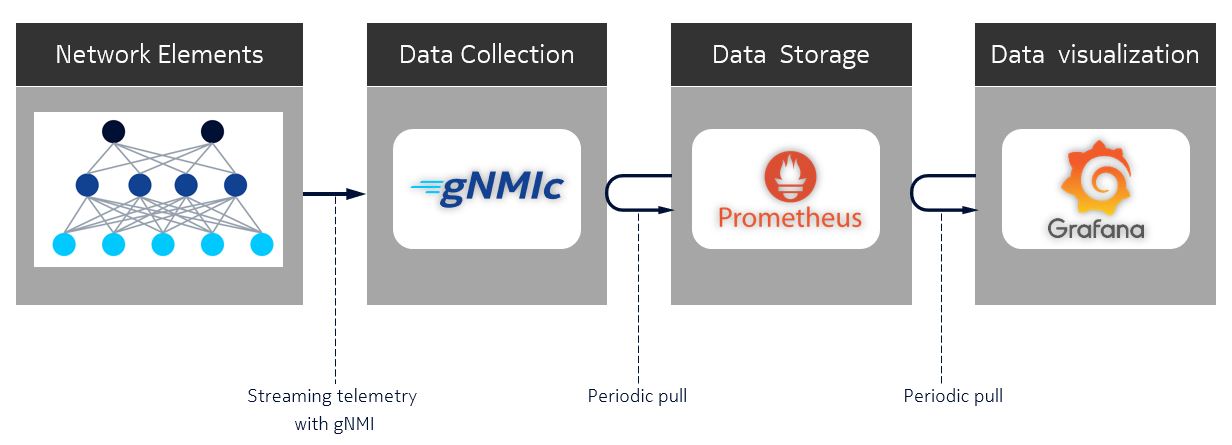

A streaming telemetry monitoring stack typically consists of:

• A telemetry collector (for example, in this activity we will use gNMIc) to retrieve the metrics from the network elements
• A time-series database (TSDB) (for example, in this activity we will use Prometheus) to collect, store and aggregate the collected metrics.
• A visualization tool (for example, in this activity we will use Grafana) to visualize the collected data and run queries on top of it

gNMI is a modern gRPC-based network management interface that is currently the most popular protocol to collect streaming telemetry data from networking devices. It is important to understand, that Streaming Telemetry with gNMI operates on the configuration and state data streamed from the network devices, but it does not provide flow extraction/sampling like NetFlow/IPFIX.

2.1 Streaming telemetry vs. SNMP#

The alternative to streaming telemetry data is the widely used SNMP (Simple Network Management Protocol) a pull-based model where the monitoring system periodically requests data from network devices. This method can cause delays in detecting issues and consumes considerable resources on both the monitored device and the monitoring system.

In contrast, streaming telemetry’s push-based approach allows network devices to stream data continuously and automatically to a centralized location. This approach enables near real-time network data collection, significantly improving the visibility and responsiveness of network monitoring.

2.2 What is gNMI#

gRPC Network Management Interface (gNMI) is a protocol to manage and report a network element’s configuration and operational data. gNMI is built on top of Google’s widely deployed gRPC protocol. gRPC provides protocol buffers (protobufs), a language neutral mechanism to transport structured data efficiently over networks making it an ideal method for streaming operational data from network elements.

There are 4 remote procedure calls (RPC) services defined by the gNMI specification which are supported by SR Linux:

• Capabilities - Provides the client with information about the device, such as gNMI version, used data models and supported encodings. Frequently used to test the gNMI connection.
• Get - Retrieve information from the device, typically small amount of data.
• Set - Is used to set, modify or delete configuration on a network device.
• Subscribe - Used for streaming telemetry - receiving a stream of state or configuration data from the device. The subscribe RPC supports different modes: In a sample mode, the data is returned with a cadence governed by a client-provided interval; in an on_change mode data is streamed every time there is a change in the subscribed data elements.

2.3 gnmic as a command line interface to gNMI#

gnmic is a command line tool developed by Nokia and donated to the OpenConfig project. It lets you interact with the gNMI server running on the SR Linux nodes. It can be used to run the various RPCs we discussed above against SR Linux. It has been pre-installed on your hackathon instance although you may install it locally if you'd prefer (follow the installation instructions if you would like to do this (it is not necessary to complete this activity)).

Log into your lab server and run gnmic command with the --help parameter. Take a look at the available commands this tool offers. You should recognize the 4 gNMI RPCs: Capabilities, Get, Set, and Subscribe.

Note, that the gnmic CLI tool is already installed on your hackathon instance.

$ gnmic --help
run gnmi rpcs from the terminal (https://gnmic.openconfig.net)

Usage:
  gnmic [command]

Available Commands:
  capabilities query targets gnmi capabilities
  get          run gnmi get on targets
  help         Help about any command
  ...          ...
  set          run gnmi set on targets
  subscribe    subscribe to gnmi updates on targets
  version      show gnmic version

2.4 Identify the gNMI path to subscribe to#

The next step is fetching or subscribing to data from SR Linux. Since SR Linux is a fully YANG-modelled NOS, we need the identify the gNMI paths that point to the data we want to fetch. You can find these paths in the SR Linux CLI.

Open a second terminal where you log into Leaf21.

ssh admin@clab-srexperts-leaf21

Let's say you want to retrieve the host-name of this device. You can find the XPath by running the following command in SR Linux CLI

tree xpath system name

--{ running }--[  ]--
A:admin@g51-leaf21# tree xpath system name
/system/name
/system/name/domain-name:
/system/name/host-name:

From the output you can see that to retrieve the host-name you will need to use the following gNMI path (referenced here as an Xpath) /system/name/host-name. CLI users who are well familiar with the SR Linux YANG model may use this approach, but in many cases you may not know where or what you are looking for.
In this situation the Nokia YANG browser may be a good option to try.
The YANG browser lets you do a search through the SR Linux YANG model. By simply typing for certain keywords (for example "host-name"), the YANG browser will return any matches found.

3. Tasks#

You should read these tasks from top-to-bottom before beginning the activity.

It is tempting to skip ahead but tasks may require you to have completed previous tasks before tackling them.

3.1 gNMI get#

You are trying to integrate your DC SR Linux nodes into the telemetry monitoring stack, however, before you start with the telemetry stack you need to learn how to stream metrics from SR Linux nodes.
Start by testing gnmic connectivity. Use gnmic capabilities operation to fetch the capabilities or the get operation to fetch the host-name of Leaf21 using the gNMI path you identified earlier.

You'll need to have visibility over the traffic-rate of the interfaces. Find the gNMI path for the traffic-rate and run gnmic with the get operation again. You will notice that there is a match in the YANG browser for ingress-bps and egress-bps.

tree xpath from state / interface traffic-rate

--{ state }--[  ]--
A:admin@g51-leaf21# tree xpath /interface traffic-rate
/interface[name=*]/traffic-rate
/interface[name=*]/traffic-rate/in-bps:
/interface[name=*]/traffic-rate/out-bps:

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD \
    --skip-verify -e json_ietf capabilities

$ gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD \
    --skip-verify -e json_ietf capabilities
gNMI version: 0.10.0
supported models:
  - urn:ietf:params:xml:ns:yang:ietf-netconf-monitoring:ietf-netconf-monitoring, IETF NETCONF (Network Configuration) Working Group, 2010-10-04
  - urn:ietf:params:xml:ns:yang:ietf-yang-library:ietf-yang-library, IETF NETCONF (Network Configuration) Working Group, 2019-01-04
  - urn:nokia.com:srlinux:aaa:aaa:srl_nokia-aaa, Nokia, 2026-03-31
  - urn:nokia.com:srlinux:aaa:aaa-password:srl_nokia-aaa-password, Nokia, 2026-03-31
  - urn:nokia.com:srlinux:aaa:aaa-types:srl_nokia-aaa-types, Nokia, 2023-03-31
  - urn:nokia.com:srlinux:acl:acl:srl_nokia-acl, Nokia, 2026-03-31

<snippet>

  - http://openconfig.net/yang/vlan:openconfig-vlan, OpenConfig working group, 2023-02-07
supported encodings:
  - JSON_IETF
  - PROTO
  - ASCII
  - 52
  - 42
  - 43
  - 45
  - 44
  - 46
  - 47
  - 48
  - 49
  - 50
  - 53

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD \
    --skip-verify -e json_ietf get \
    --path /system/name/host-name

$ gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf get \
--path /system/name/host-name
[
  {
    "source": "clab-srexperts-leaf21:57401",
    "timestamp": 1776852553304462822,
    "time": "2026-04-22T06:09:13.304462822-04:00",
    "updates": [
      {
        "Path": "srl_nokia-system:system/srl_nokia-system-name:name/host-name",
        "values": {
          "srl_nokia-system:system/srl_nokia-system-name:name/host-name": "g51-leaf21"
        }
      }
    ]
  }
]

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD \
    --skip-verify -e json_ietf get \
    --path '/interface[name=*]/traffic-rate'

$ gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf get \
--path '/interface[name=*]/traffic-rate'
[
  {
    "source": "clab-srexperts-leaf21:57401",
    "timestamp": 1776853507694583905,
    "time": "2026-04-22T06:25:07.694583905-04:00",
    "updates": [
      {
        "Path": "",
        "values": {
          "": {
            "srl_nokia-interfaces:interface": [
              {
                "name": "ethernet-1/1",
                "traffic-rate": {
                  "in-bps": "0",
                  "out-bps": "0"
                }
              },
              {
                "name": "ethernet-1/2",
                "traffic-rate": {
                  "in-bps": "0",
                  "out-bps": "0"
                }
              },
<snippet>

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD \
    --skip-verify -e json_ietf get \
    --path '/interface[name=ethernet-1/31]/traffic-rate'

$  gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf get \
--path '/interface[name=ethernet-1/31]/traffic-rate'
[
  {
    "source": "clab-srexperts-leaf21:57401",
    "timestamp": 1776853570356331216,
    "time": "2026-04-22T06:26:10.356331216-04:00",
    "updates": [
      {
        "Path": "srl_nokia-interfaces:interface[name=ethernet-1/31]/traffic-rate",
        "values": {
          "srl_nokia-interfaces:interface/traffic-rate": {
            "in-bps": "221",
            "out-bps": "158"
          }
        }
      }
    ]
  }
]

3.2 gNMI subscriptions#

To collect telemetry data and create visualization dashboards you need continuously streaming data. This is done using the gNMI subscribe RPC.
Instead of performing a gNMI get, use the subscribe RPC to stream the traffic-rate for interface ethernet-1/31 every 5 seconds.

Use the gnmic command with the subscribe parameter. You will also need to set the stream-mode to sample and the sample-interval to 5 seconds. The traffic-rate should now display on your terminal every 5 seconds.

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf subscribe \
--stream-mode sample --sample-interval 5s \
--path '/interface[name=ethernet-1/31]/traffic-rate'

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf subscribe \
--stream-mode sample --sample-interval 5s \
--path '/interface[name=ethernet-1/31]/traffic-rate'
{
  "source": "clab-srexperts-leaf21:57401",
  "subscription-name": "default-1776859390",
  "timestamp": 1776859390882674691,
  "time": "2026-04-22T08:03:10.882674691-04:00",
  "updates": [
    {
      "Path": "srl_nokia-interfaces:interface[name=ethernet-1/31]/traffic-rate",
      "values": {
        "srl_nokia-interfaces:interface/traffic-rate": {
          "in-bps": "324",
          "out-bps": "326"
        }
      }
    }
  ]
}
{
  "sync-response": true
}
<update every 5 seconds>
}

Choosing a stream mode of sample is useful when you have fast changing data, but there are other cases where your operational data doesn't change frequently. Think about BGP neighborship states or interface operational states. It wouldn't be useful to receive their status every 5 seconds if it almost never changes. It would be much more efficient if we only receive an update when their state changes. For these cases you can use the on-change stream mode.

Search the YANG browser for the gNMI path corresponding to the oper-state of the ethernet-1/32 interface.

Adjust the stream mode to on-change and try to fetch the oper-state of the interface, then disable and re-enable the interface in the configuration (don't forget to commit your changes). You should notice that we only will receive an update when the operational state of interface ethernet-1/32 changes.

gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf subscribe \
--stream-mode on-change \
--path '/interface[name=ethernet-1/32]/oper-state'

received signal 'interrupt'. terminating...
$ gnmic -a clab-srexperts-leaf21:57401 -u admin -p $EVENT_PASSWORD --skip-verify -e json_ietf subscribe \
--stream-mode on-change \
--path '/interface[name=ethernet-1/32]/oper-state'
{
  "source": "clab-srexperts-leaf21:57401",
  "subscription-name": "default-1776864133",
  "timestamp": 1776864133878651697,
  "time": "2026-04-22T09:22:13.878651697-04:00",
  "updates": [
    {
      "Path": "srl_nokia-interfaces:interface[name=ethernet-1/32]",
      "values": {
        "srl_nokia-interfaces:interface": {
          "oper-state": "up"
        }
      }
    }
  ]
}
{
  "sync-response": true
}
{
  "source": "clab-srexperts-leaf21:57401",
  "subscription-name": "default-1776864133",
  "timestamp": 1776864156401439327,
  "time": "2026-04-22T09:22:36.401439327-04:00",
  "updates": [
    {
      "Path": "srl_nokia-interfaces:interface[name=ethernet-1/32]",
      "values": {
        "srl_nokia-interfaces:interface": {
          "oper-state": "down"
        }
      }
    }
  ]
}
{
  "source": "clab-srexperts-leaf21:57401",
  "subscription-name": "default-1776864133",
  "timestamp": 1776864171327957343,
  "time": "2026-04-22T09:22:51.327957343-04:00",
  "updates": [
    {
      "Path": "srl_nokia-interfaces:interface[name=ethernet-1/32]",
      "values": {
        "srl_nokia-interfaces:interface": {
          "oper-state": "up"
        }
      }
    }
  ]
}

3.3 Streaming telemetry using the telemetry monitoring stack#

Now that you know how to stream metrics from SR Linux nodes, it's time to take it to the next level. Visualizing the data using a telemetry monitoring stack is crucial for understanding what is happening in your network in real-time. A telemetry monitoring stack typically consists of three elements:

1. A telemetry collector (We will use gNMIc)
2. A time series database (TSDB) (We will use Prometheus)
3. A visualization dashboard (We will use Grafana)

Let's have a closer look at the telemetry stack components and try to understand what their roles are.

3.3.1 gNMIc#

gNMIc is used to subscribe to the telemetry data from the fabric nodes and expose it to the Prometheus time-series database.

The gNMIc configuration file config.yml(file at ~/SReXperts/clab/configs/gnmic/config.yml) is applied to the gNMIc container at startup. It instructs the container to subscribe to telemetry data and export it to the Prometheus time-series database. Examine the file to locate where the gNMI paths are described. You should also note Prometheus is defined as an output.

username: admin
password: ${GNMIC_PASSWORD}
port: 57400
timeout: 10s

loader:
  type: docker

  address: unix:///run/docker.sock
  filters:

    - containers:
        # containers returned by `docker ps -f "label=clab-node-kind=nokia_srlinux"`
        - label: clab-node-kind=nokia_srlinux
      network:
        # networks returned by `docker network ls -f "name=srexperts"`
        name: srexperts

      port: "57400"
      config:
        username: admin
        insecure: true
        encoding: proto
        subscriptions:
          - srl_platform
          - srl_apps
          - srl_if_stats
          - srl_if_lag_stats
          - srl_net_instance
          - srl_bgp_stats
          - srl_event_handler_stats

#<snippet>

subscriptions:
  srl_if_stats:
    paths:
      - /interface[name=ethernet-1/*]/statistics
      - /interface[name=*]/subinterface[index=*]/statistics/
      - /interface[name=ethernet-1/*]/oper-state
      - /interface[name=ethernet-1/*]/traffic-rate
    mode: stream
    stream-mode: sample
    sample-interval: 5s
#<snippet>

outputs:
  prom:
    type: prometheus
    listen: :9273
    path: /metrics
    export-timestamps: true
    strings-as-labels: true
    debug: false
    event-processors:
      - trim-sros-prefixes
      - add-labels
      - trim-regex
      - group-by-interface
      - up-down-map
#<snippet>

3.3.2 Prometheus#

Prometheus is a popular open-source time-series database (TSDB). It is used in this lab to scrape and store the telemetry data exposed by the telemetry collector (gNMIc) every 5 seconds. Metrics are stored with the timestamp (Time Series Data) at which they were recorded, alongside optional key-value pairs called labels.

global:
  scrape_interval: 5s

# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
scrape_configs:
  - job_name: "gnmic"
    static_configs:
      - targets: ["gnmic:9273"]

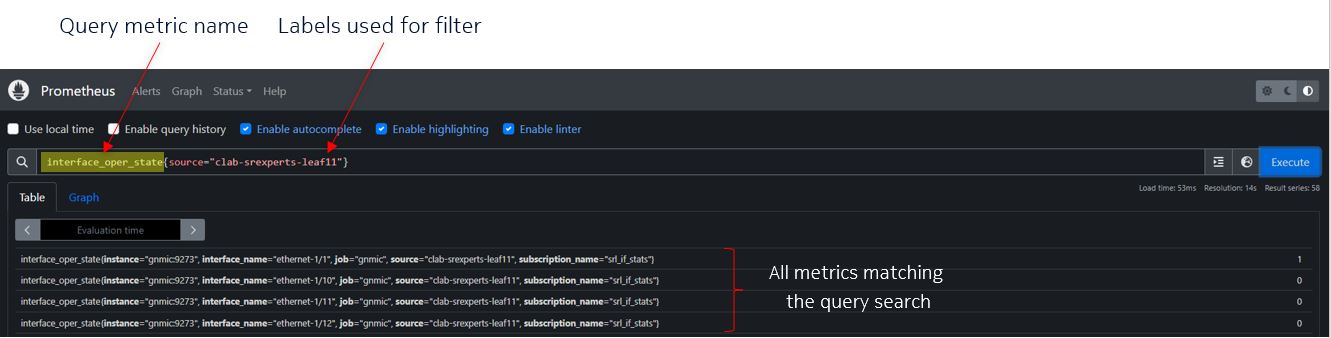

Open Prometheus and execute the query: interface_oper_state{source="clab-srexperts-leaf21"}

To open up Prometheus UI on your laptop use http://<group-id>.srexperts.net:9090 address.

3.3.3 Grafana#

Grafana is another key component of the telemetry monitoring stack, as it provides visualization for the collected telemetry data. There are preconfigured reference dashboards that provide multiple views on the collected real-time data.

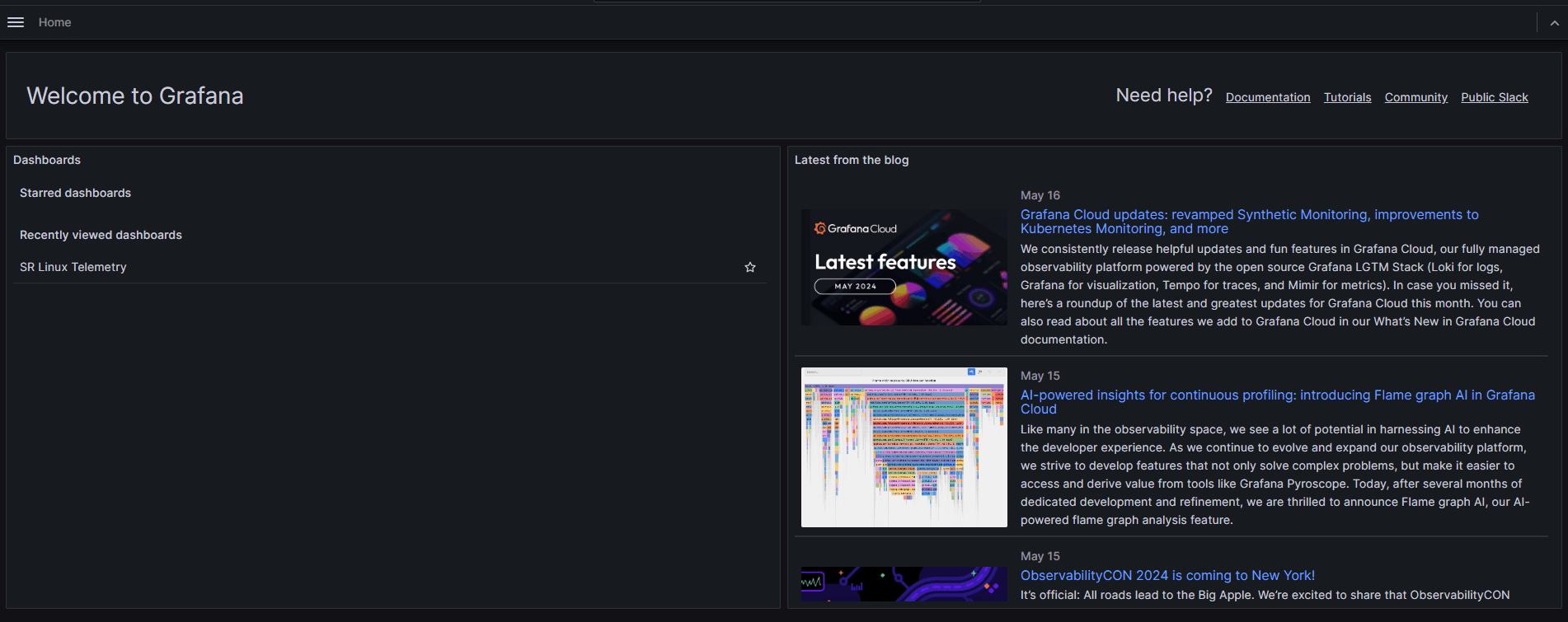

To open up the Grafana UI on your laptop, use your browser to go to the http://<group-id>.srexperts.net:3000 address.

Grafana is pre-configured with anonymous access enabled so that you can view the dashboards without authentication. To edit the dashboards you have to login with the username admin and password $EVENT_PASSWORD. The login button is in the top right corner of the Grafana UI. There are some preconfigured dashboards available.

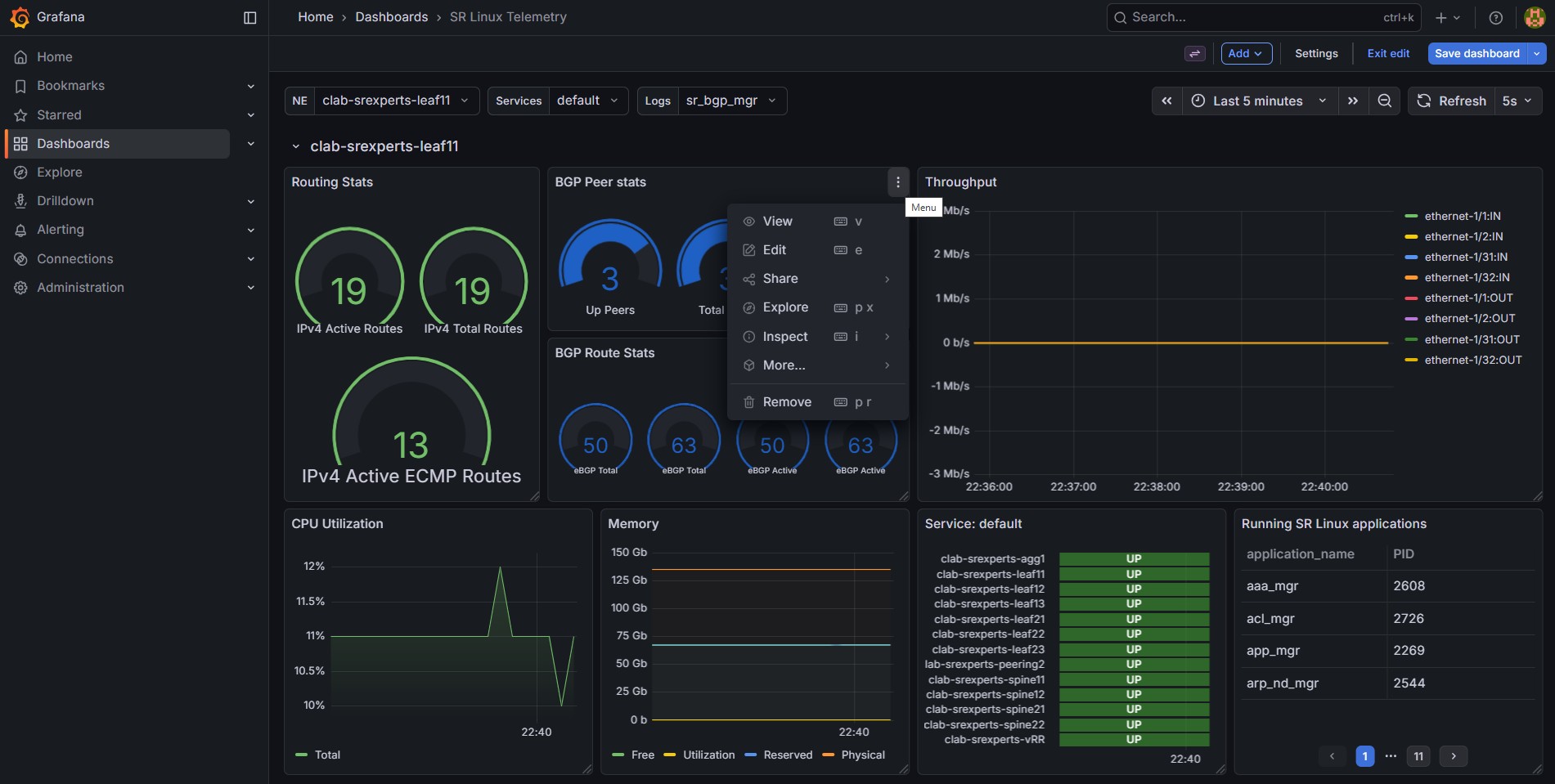

Navigate to the SR Linux Telemetry dashboard to explore the look and feel of what is available. Check which panels are available and what data they show. Try to understand how the data is collected and how it is visualized.

3.4 Create new dashboards#

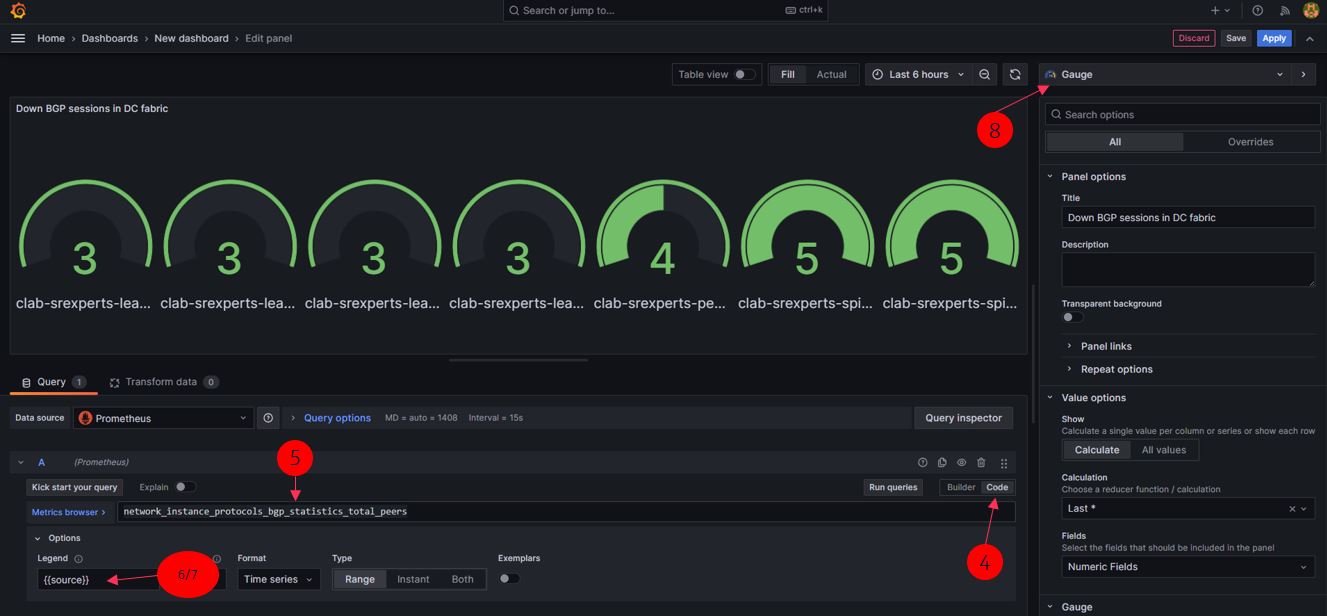

To create dashboards you will need to log in. Click on the Sign in button in the top right. User admin with password $EVENT_PASSWORD.

Under the SR Linux Telemetry dashboard you have several visualization panels. If you hover the top right of each panel you will see the ⋮ (kebab menu icon) that opens the menu and shows the edit option. You may click this to inspect the panel configuration.

The BGP Peer stats panel displays three gauges:

• Up peers
• Total Peers
• Disabled Peers

You can edit it to inspect the configurations as shown in the Fig.4 below.

Your task is to create a dashboard that visualizes if there are any BGP sessions down in the data center fabric. There is no metric that corresponds to the amount of BGP down session, but we can calculate it from the total amount of BGP Total peers available and subtract the total amount BGP sessions in Up state. You may create a color scheme with thresholds green=0, yellow=1 and red=2.

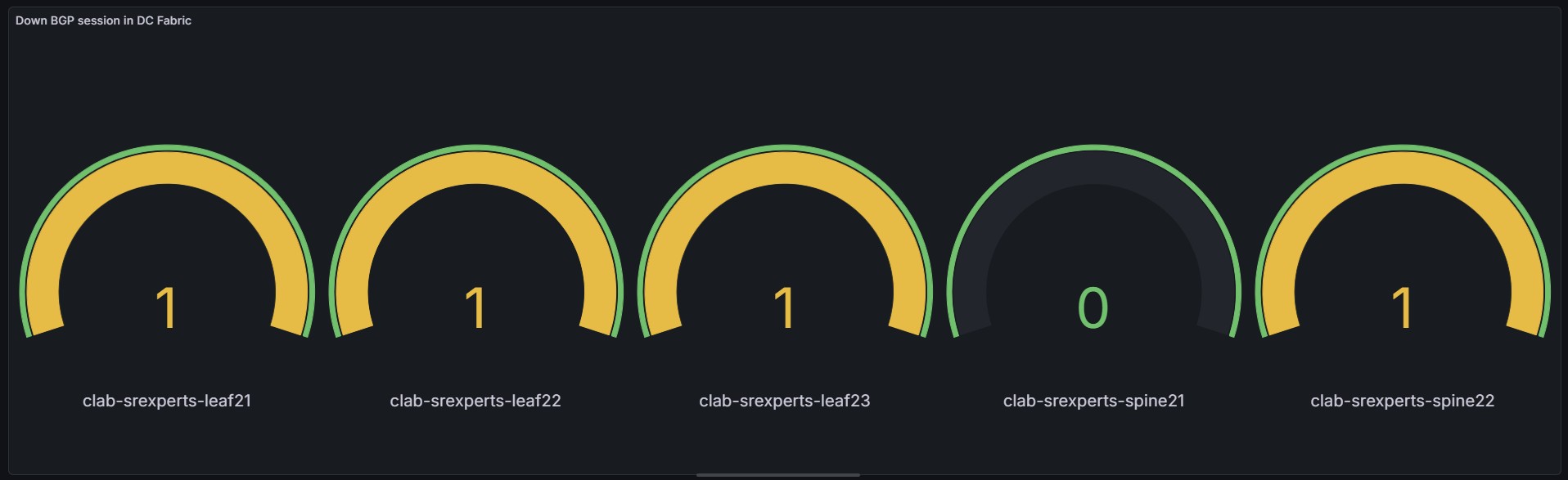

Bellow is an example of what your dashboard showing the BGP sessions that are down in the fabric might look like.

Solution: Create BGP peers down dashboard

You first need to create a new dashboard showing the total number of peers and then calculate the number of BGP sessions that are down

Create a new dashboardCalculate total BGP session that are down

1. Click Dashboards in the menu on the left and then select New and New Dashboard
2. Click + Add visualization and select Prometheus
3. At the bottom you should see the query builder menu.
4. Change the Metric view from Builder to Code (on the right)
5. Type total_peers in the Metric browser and observe the available options. From the list, type or select network_instance_protocols_bgp_statistics_total_peers
6. Click > Options and choose Custom from the Legend dropdown menu
7. Type {{source}} in the Legend box
8. In the upper right, click Time series to expand the dropdown menu
9. Choose Gauge from the dropdown

Your panel should now look like this with gauges showing only the total peers

1. In the Metric browser subtract the number of up peers (network_instance_protocols_bgp_statistics_up_peers) from the total number of peers (network_instance_protocols_bgp_statistics_total_peers)
2. In the Panel options section on the right, type Down BGP session in DC fabric in the Title box
3. In the Visualization options on the right, select the color scheme "From Thresholds (by value)"
4. In the Thresholds set base color to green, yellow=1 and red=2
5. Click apply in the upper right corner and Save dashboard.

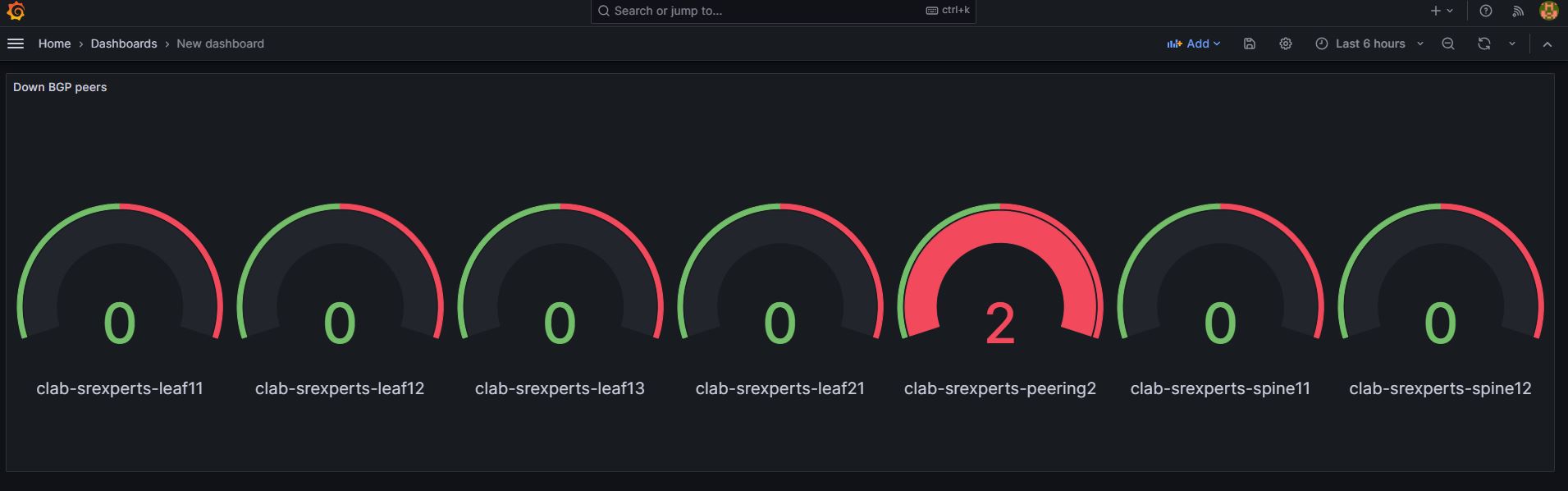

You should now see the total amount of BGP sessions that are down in the fabric.

4. Summary and Review#

Congratulations! You managed to integrate the nodes into the streaming telemetry stack as requested. A few more dashboards and your network is ready for production!

If you have got this far you have completed this activity and achieved the following:

• Learnt how streaming telemetry is used for network monitoring and the advantages over SNMP
• Understood how to identify and subscribe to streaming telemetry metrics with gnmic using the subscribe RPC
• Examined how the components of the telemetry monitoring stack work together
• Learnt how to configure and enable streaming telemetry using gNMI over gRPC on SR Linux
• Used the Grafana visualization tool to create your own dashboard using the metrics streamed from SR Linux

This is a pretty extensive list of achievements! Well done!

If you're hungry for more have a go at another activity! Perhaps try a topic that is new to you?
